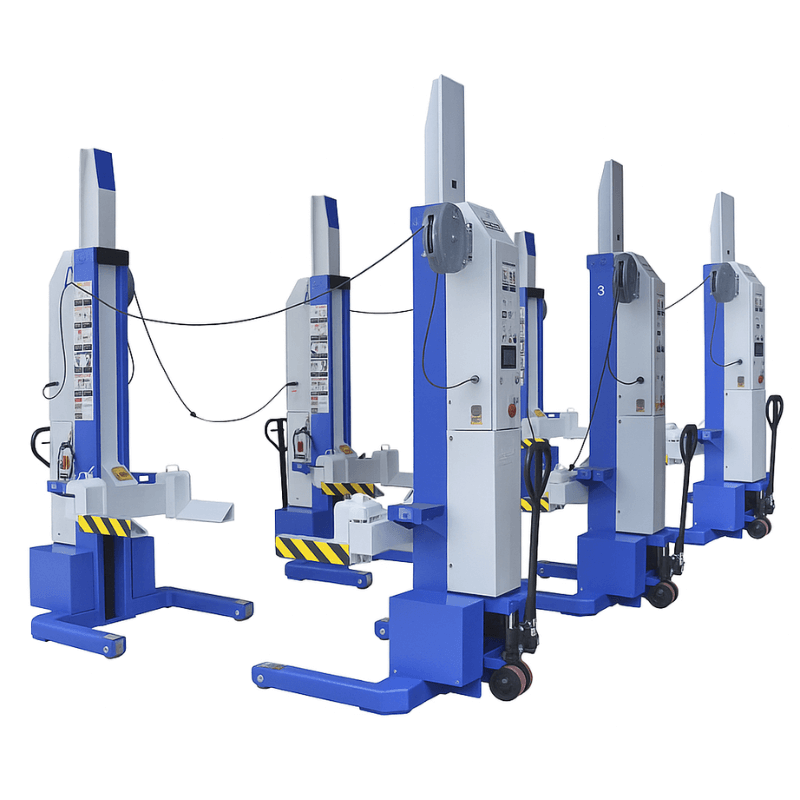

The MSC-13K-B-678 series offers a robust and versatile lifting solution for demanding applications. With lifting capacity of 78,000 lbs and flexible column configurations, you can find the perfect fit for your needs. A lifting height of 67.1 inches ensures wide-ranging utility, while adjustable forks accommodate various load sizes. Powered by a reliable AC input and with a dependable DC output per column, these lifts deliver consistent performance. Advanced Siemens PLC and Electro-Optical encoder technology ensures smooth, synchronized lifting, while independent locking mechanisms and emergency switches provide added protection. The user-friendly master controller simplifies operation.
Rated for 13,000 lb, it's suited to heavy-duty fleet and commercial vehicle service, bus and truck maintenance facilities, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
13,000 lb lifting capacity built for dependable daily use
Manufacturer warranty included on every unit
Documented specifications you can verify before you buy
Ideal For
Heavy-duty fleet and commercial vehicle service
Bus and truck maintenance facilities
Shops needing flexible, relocatable heavy-vehicle lifting without in-ground installation
Technical Specifications
Lift Models | MSC-13K-B-678 |
Column Configurations | 6 Column |
Capacity | 78,000 lb |
Lifting Height | 67.1″ |
Overall Width | 44.1″ |
Fork Adjustable Range | 6.3″ – 22″ |
Fork Length | 14″ |
Fork to Column Clearance | 9.3″ |
Rise Time | 75S |
Descent Time | 60S |
Maximum Distance between Columns | 32.8′ |
Minimum Concrete Surface Strength | 3000 PSI |
Noise Level | 70 dB(A) |
Battery Type (Not included) | 12VDC Sealed Deep Cycle Battery (BCI Group31, AH-105) |
