Handling tires can be a real hassle, especially when your equipment isn’t up to the task. You need reliable machinery that can keep pace with the demands of your busy workshop. Enter the Atlas TC303 tire changer and the Atlas WBT-210 computerized wheel balancer—your new best friends in the workshop.
The TC303 is a super-duty tire changer designed for serious work, accommodating rim sizes from 14 inches to a jaw-dropping 56 inches and tire diameters exceeding 90 inches. With a maximum tire width of 42 inches and a clamping power of 13,173 lbs, it can handle even the toughest jobs with ease. Meanwhile, the WBT-210 is your go-to for balancing everything from passenger cars to hefty 300-pound semi-truck tires. It efficiently manages rim sizes from 10 inches to 32 inches and can balance wheels with a maximum weight of 440 lbs. The TC303 features a robust bead breaker with a force of 5,930 lbs and comes equipped with rim clamps for both steel and alloy wheels, plus an alloy rim adapter set with plastic inserts. Both machines come with a one-year parts-only warranty, ensuring you can invest in your workshop with confidence. Why settle for mediocre when you can elevate your tire service with the Atlas TC303 and WBT-210 combo?

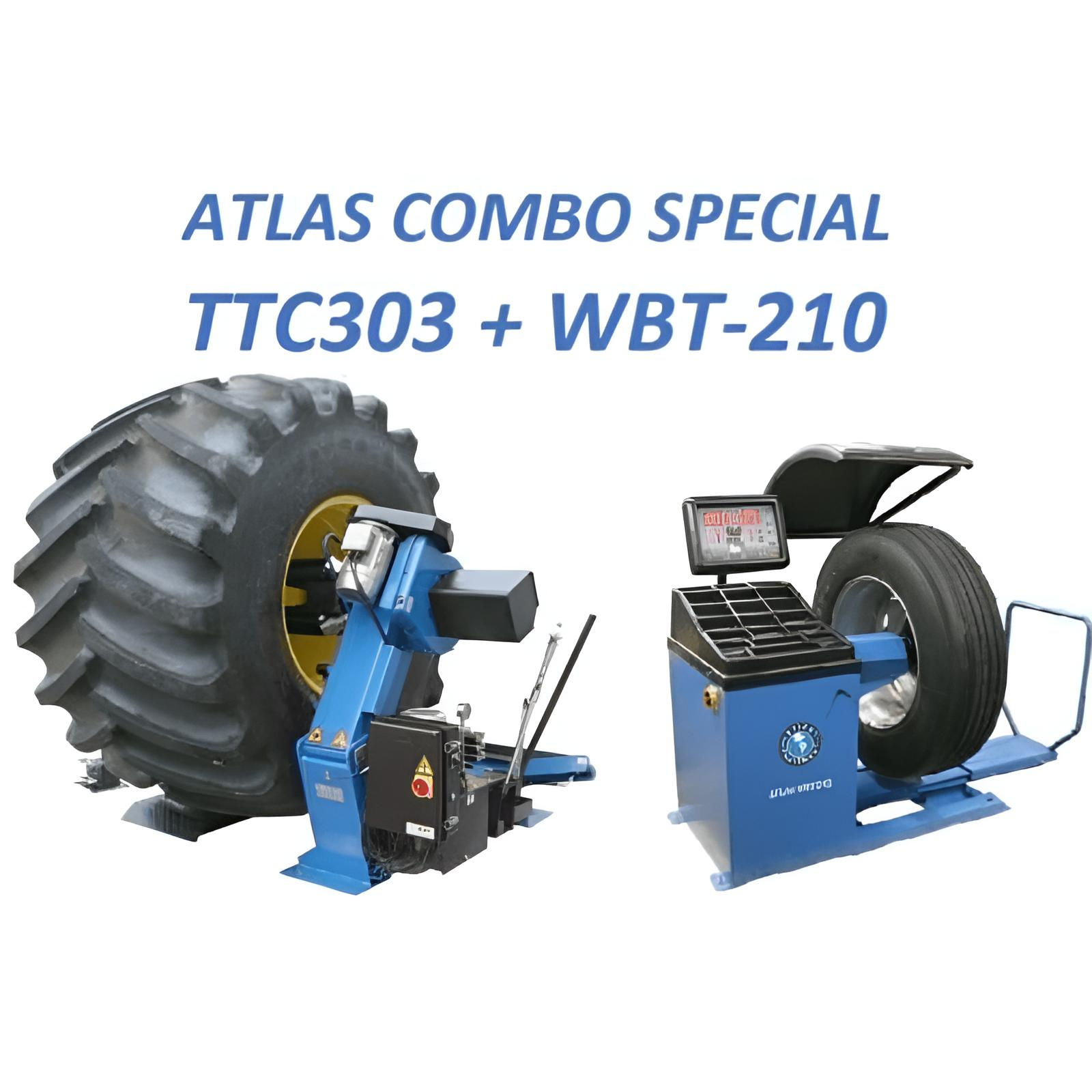

Tire Changer TTC303 + Wheel Balancer WBT-210 Specification:
TTC303 Tire Changer
Rim Clamping Range 14" - 46"
Max Clamping Size W/ Extensions 56""
Max Wheel Weight 3,300 lbs.
Max Tire Diameter 90 1/2" (7' 6 1/2")
Max Tire Width 42" (3' 6")
Clamping Power 13,173 lbs.
Operating Pressure 0-1885 PSI
Acoustic Pressure <70dBA
Bead Breaker Force 5930 lbs.
Tool Arm Positioning Manual
Tool Head Positioning Manual
Construction Single Piece Frame w/ Solid Floor Plate
Hydraulic Motor Power 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
Chuck Motor Power 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
Shipping Weight 1,800 lbs.
WBT-210 Wheel Balancer
Max Tire Diameter: 47"
Rim Sizes (Cars And Light Trucks): 10"-32"
Rim Width: 1 1/2"-20"
Shaft Size: 40mm
Max. Wheel Weight: 440 lbs.
Balancing Speed: 150 rpm Car-Light Truck Mode/90 rpm Truck Mode
Data Entry: All Dimensions Manual Entry
Measurements: Standard Or Metric
Accuracy: 1 gram Car-Light Truck Mode/10 gram Truck Mode
Weight Position Resolution: 1.4 Degrees
Self Calibration: Yes
Motor: 1/3 HP
Air Requirement: 115-140 PSI (MUST NOT EXCEED 140 PSI)
Power Supply: 220volt +/- 5% (209-231 volts) 1phase, 30 amp breaker required
Shipping Weight: 725 lbs.
Key Features
Super Duty Truck Tire Changer
220VOLT 1 PHASE ELECTRIC
Handles rims from 14″ to 56″ and tire diameters in excess of 90″
Accommodates tires with a max width of up to 42″
Bead Breaker
Mount/Demount Head
Electric/Hydraulic Self-Centering Four Jaw Chuck
5 different rim locking positions
Wired Mobile Control Unit
Heavy Duty Tire Tool Included
Rim Clamps for Steel and Alloy Wheels Included
Alloy Rim Adapter Set w/ Plastic Inserts Included
1 Year Parts Only Warranty
Computer Controlled Heavy Duty Spin Balancer
Cone sets for car and light truck tires
Cone and spacer set for truck, bus, or implement tires
Plastic Quick Release Nut included
Heavy duty steel wing nut included
Pneumatic wheel lift (external air supply required)
Automatic start/stop when hood is lowered/raised.
Static and dynamic balancing modes.
Rapid optimization (OPT)
Self-diagnosis
Self-calibration
Exceptional stability in reading the unbalance between planes
Display in grams or ounces, and in mm or inches
Wheel Weight Pliers Included
Wheel Width Calipers Included
Replacement Parts & Wear Items Always in Stock
1 Year Parts Only Warranty
Atlas TTC303 Tire Changer Optional Item (Sold Separately)
Atlanta, GA
Dallas, TX
Fresno, CA
Indianapolis, IN
Phoenix, AZ
Somerset, NJ
Ideal For
Shops wanting a complete tire-service setup in one purchase
Tire shops and dealerships handling daily tire service
Auto repair centers adding wheel and tire work
Home garages and serious DIY mechanics
